90mm/ 355mm HDPE Pipe Butt Welding Machine

SUD355H pipe welding machineMachine DescriptionBrief:Suitable for welding of plastic pipes and fittings made from PE PP PVDFBe made of Aluminum material.Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.Feature:1.Removable PTFE coated heating plate with seperate control system.2.Electric Planning

Featured Products

SUD355H pipe welding machine
Machine Description
Brief:
Suitable for welding of plastic pipes and fittings made from PE PP PVDF
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:
1.Removable PTFE coated heating plate with seperate control system.
2.Electric Planning Tool with reversible double cutting edge blades.
3.Hydraulic Unit provides welding machine with compressing power.
4.Be made of Aluminum material.
5.Low starting pressure ensures reliable welding quality of small pipes..
6.Temperature Controller and Timer, easy to know the exact time and temperature.

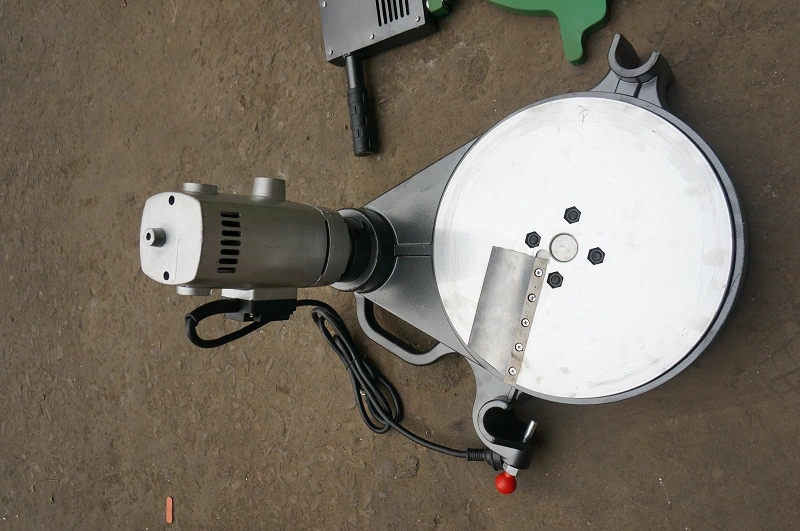

Machine Pictures
90mm/355mm HDPE Pipes Butt Fusion Welding Machine90mm/355mm HDPE Pipes Butt Fusion Welding Machine
Machine Specification
Model                          SUD355HPlanning Tool Power    1.10KW
Welding Range(mm)90 110 125 140 160 180 200 225 250 315                               355Temp.Deviation in Surface    ≤±5ºC
Heating Plate Max.Temp                             270ºCHydraulic Unit Power     0.75KW
Working Voltage                          220V 50HZTotal Power     5.45KW
Pressure Adjustable Ranges                          0-6.3MPaWeight     260KG
Heating Plate Power                           3.60KWVolume1.1mx1.1mx1.1m

Machine Certificate
90mm/355mm HDPE Pipes Butt Fusion Welding Machine
90mm/355mm HDPE Pipes Butt Fusion Welding Machine
