FTTH fiber optic cable tool equipment Seikofire S5 splicing

ARC Fusion Splicer S5FeaturesCore to core digital alignment6s for splicing, 18s for tube-heating.4.3-inch touch screen, small size, easy to carry.Three-in-one fiber fixture, suitable for all types of optic fibers.High-power dual-LED light, convenient for night construction.5200mAh removable lithium battery, 280 cycles splicing a

Featured Products

ARC Fusion Splicer S5
Features
Core to core digital alignment
6s for splicing, 18s for tube-heating.
4.3-inch touch screen, small size, easy to carry.
Three-in-one fiber fixture, suitable for all types of optic fibers.
High-power dual-LED light, convenient for night construction.
5200mAh removable lithium battery, 280 cycles splicing and heating.
ARC calibrated by temperature and air pressure automatically
No mirror design, reducing maintenance workload.
Apply to high & low temperature, high altitude and harsh environment.
Specifications
Fiber countSingle
Applicable fiberSM (G.652), MM (G.651), DS (G.653), NZDS (G.655), others (like G.657)
Splicing loss0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)
Return loss>60dB
Operate modeManual, Auto
Fiber alignmentCore to core alignment
Splicing timeTypical 6s
Heating timeTypical 18s
Heat shrinkable tube60mm, 40mm
Fiber cleaved length8-16mm
Fiber view magnification350X (X or Y view), 150X (X and Y view)
Display4.3-inch touch-screen LCD
Tension test2N
Battery capacity5200mAh removable inner Li-battery, 280 cycles splicing and heating after one-fully charged.
Electrode lifeAround 5000 ARC discharges
InterfaceUSB for data download and software update
Night constructionBuilt-in high-power dual-LED lights
Power supplyAdaptor, input: AC100-240V, output: DC13.5V/4.8A.
Operation conditionTemperature: -15-50ºC, humidity: <95%RH (no condensation)
Working altitude: 0-5000m. Resist max. wind speed: ≤15m/s
Weight 1.95 kg (including battery)
Dimension130mm(L)×154mm(W)×132mm(H)

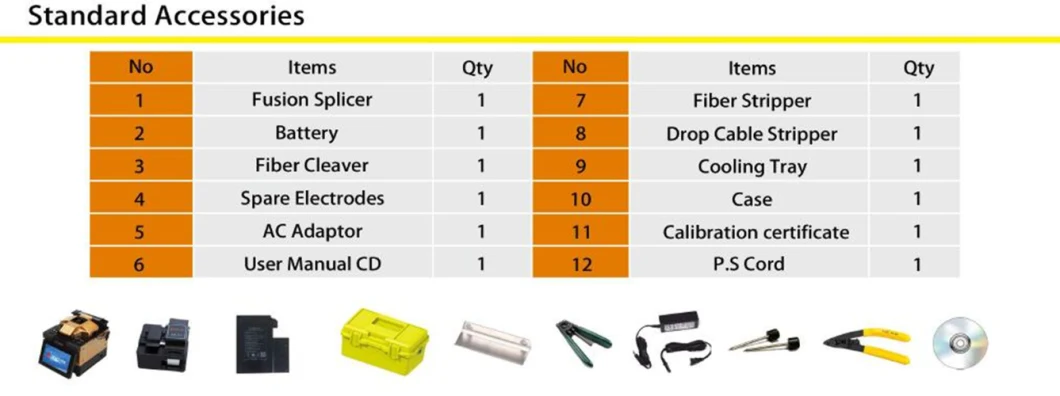

Standard Package
NoItemsQty
1Fusion splicer1
2Fiber cleaver1
3Fiber stripper1
4Drop cable stripper1
5AC adaptor1
6P.S cord1
7Spare electrodes1 pair
8Cooling tray1
9Manual (CD)1
10Carrying case1
11Calibration certificate1

Arc Fusion Splicer S5
Arc Fusion Splicer S5
Arc Fusion Splicer S5
Arc Fusion Splicer S5
Arc Fusion Splicer S5
Arc Fusion Splicer S5
Arc Fusion Splicer S5
Package
If no special request, we will use standard carton packing with easy to carry case. We will use safety foam in the carrying case to protect products, in order to avoid any damage in delivery.
Custom-made Professional tool kit(case) with anti-shock sponge inside + Export-standard Carton Box with PE Foam inside.

Applications
Telecom, Unicom, Mobile CATV, Power, Railway, Petro-chemical, Troop, Coal, College, Science & Research Agency, etc.

Delivery & Shipping
Delivery Leadtime : Within 3 to 5 working days for small orders after deposit received, kindly negotiation for bulk order.
Shipment: By DHL, FedEx, TNT, EMS & UPS, directly delivery to your hands.

Warranty & Service
After-sales Service

We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.
We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during use, just call us, we are glad to offer technical support timely.

Life-long Maintenance Service
During the warranty period, we can repair or replace the defective parts for free.
After the warranty time, we also repair the defective parts, but only charge part cost.

Shipping Damage Management
When you receive the package, please open and check it before signing, if it's damaged, ask a "Damage proof" from the delivery company.
