90- 355mm Semi-Automatic HDPE Plastic Pipe Butt Welding Machine

                                         90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding MachineProduct DescriptionSuitable for welding of plastic pipes and fittings made from PE, PP&PVDF.Be made of Aluminum

Featured Products

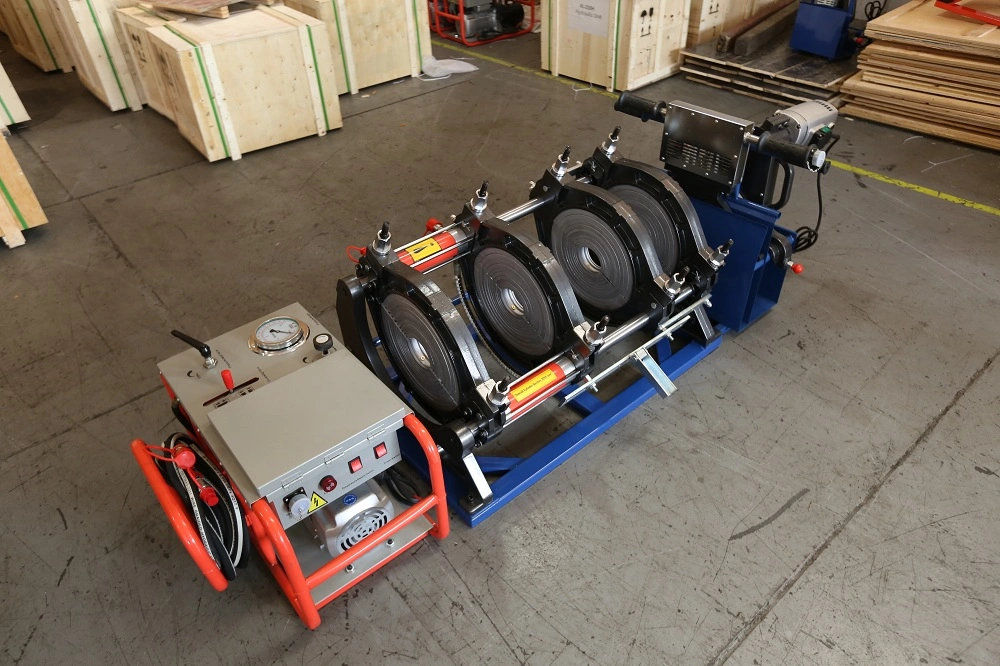

90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine

90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine

Product Description

Suitable for welding of plastic pipes and fittings made from PE, PP&PVDF.
Be made of Aluminum material.
Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
 Removerable PTFE coated heating plate with seperate temperature control system.
Electric Planning Tool with reversible double cutting edge blades.
Hydraulic Unit provides welding machine with compressing power.
Be made of Aluminum material.
Low starting pressure ensures reliable welding quality of small pipes.
Temperature Controller and Timer, easy to know the exact time and temperature.


Specification
ModelSUD355H
Welding range(mm)90 110 125 140 160 180 200 225 250 280 315 355
Heating Plate Max. Temp270°C
Temp. Deviation in Surface≤±5°C
Working Voltage220V/50HZ
Pressure Adjustable Ranges0-6.3MPa
Heating Plate Power3.60KW
Planning Tool Power1.10KW
Hydraulic Unit Power0.75KW
Total Power5.45KW
Weight260KG
Volume1.1M3

90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine
90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine

Packing And Delivery

90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine


Construction Site

90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine

Exhibitions

90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine
90-355mm Semi Automatic HDPE Plastic Pipe Butt Fusion Welding Machine
